210mm*50mmOLED柔性照明面板

由于OLED照明在没有任何处理的纯净的状态下拥有相当于自然光的光谱分布，满足了人类对光线追求的最终目标——自然光。因此OLED照明在许多住宅、商用市场、展览展示照明等市场方面具有巨大的应用潜力，高效能、高显指、不发热、无眩光、无蓝光、无紫外线、光谱分布极近自然光等众多人性化的特点，以及超轻薄、可弯曲、可透明的多样化设计特性，为oled照明的市场推广提供了强大的动力。

OLED照明将因其独特的优势，正在改变我们在许多环境中使用光的方式。

OLED light panels have spectral power distributions closest to sunlight, and people feel emotionally comfortable under OLED light. Therefore, OLEDs are ideal for places where natural light is unavailable, or for places where good quality light is needed.

 Human-Friendly Light & Unlimited Design Possibilities:Ultra-thin,light,flexible, no glare, no UV, no heat, no blue and so on,OLEDs will change your Light-Style

210mm*50mmOLED柔性照明面板

OLED面板应用在照明上具有轻、薄、光源分布均匀、可弯曲、不发热、无眩光、不刺眼、无紫外线、无蓝光危害等诸多优势，OLED将因其独特的人性化特点和可设计性能优势，改变我们在许多环境中使用光的方式。

OLED light panels have spectral power distributions closest to sunlight, and people feel emotionally comfortable under OLED light. Therefore, OLEDs are ideal for places where natural light is unavailable, or for places where good quality light is needed.


Human-Friendly Light & Unlimited Design Possibilities:Ultra-thin,light,flexible, no glare, no UV, no heat, no blue and so on,OLEDs will change your Light-Style

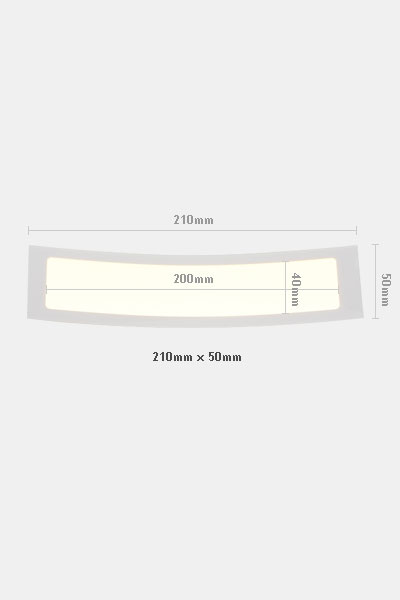

210 mm*50mm OLED flexible Lighting Sheet

210mm*50mmOLED柔性照明面板——设计案例

OLED light panels classic case in real-life applications

OLED照明面板其他可选尺寸

OLED Light Panels available sizes

	健康护眼  接近自然 ☉OLED采用面光源，不刺眼，接近自然光 ☉无炫光和阴影，不引起眼疲劳，有效预防近视 ☉无紫外线，不吸引蚊虫，更不会引起皮肤衰老 ☉无LED中的蓝光，不损害视网膜，预防白内障

柔性显示 随心而变 ☉面板灵活、轻薄，可弯曲 ☉平面化照明，轻松实现照明大面积化 ☉设计师可随意设计更多创造性的形状 ☉可集成到任何产品或体系结构,节省空间和成本

	节能环保 不发热 ☉采用自发光技术，无需背光源，同等耗能亮度更高 ☉灯体温度< 35°，超低热损耗，比LED节能70%左右

OLED照明，新一代健康照明——让照明回归自然光

OLED Lighting，Let illumination return to natural light

OLED照明在许多住宅、商用市场、展示照明方面具有巨大的应用潜力，面光源、极近自然光、不刺眼、无眩光、无频闪、无蓝光、无、不发热、高显指、高效能等众多人性化的特点，以及超轻薄、可弯曲、可透明的多样化设计性能，为市场推广提供了强大的动力。OLED照明将因其独特的优势，改变我们在许多环境中使用光的方式。

OLED light panels have spectral power distributions closest to sunlight, and people feel emotionally comfortable under OLED light. Therefore, OLEDs are ideal for places where natural light is unavailable, or for places where good quality light is needed.

Human-Friendly Light & Unlimited Design Possibilities:Ultra-thin,light,flexible, no glare, no UV, no heat, no blue and so on,OLEDs will change your Light-Style

健康的光线&设计创新无极限

健康的光线		设计无极限
	不刺眼 / 减少眼睛疲劳度 OLED是光谱表现较和缓、拥有自然光特性的面光源。OLED照明，因其发出的光线均匀度很优秀，不会产生刺眼现象，所以有助于减少眼睛疲劳感，为人们的眼睛提供最舒适感觉的光线。 No Glare or Eye Strain OLEDs are inherently a ’surface light source’ with ‘soft and pleasant’ spectral distributions. These factors combined with enhancement of it’s OLED panel ’uniformity; reduces glare and prevents eyestrain, providing light that is comfortable and pleasant on the eyes.		厚度薄 & 重量轻 由于OLED照明具有很薄、很轻的特点，因此会实现只有OLED照明才可以的设计创新。 不仅如此，在电动汽车、航空飞机、潜艇等重量极大的应用领域方面，也会带来节省能源的效果。 Thin & Light OLED panels are Ultra-thin and super-lightweight. The thinness can provide design flexibilities, unique to OLEDs. Being lightweight will also contribute to additional energy saving for applications sensitive to weight such as electric cars, airplanes, and submarines.
	发热温度低 由于OLED发热温度仅限于室温水平，因此很适宜于在人们的生活环境中使用。尤其是，OLED不发热、不伤眼这两大特点，既安全又健康，因此很适用于室内等与人接触最密切的空间环境。 No Heat OLED panels are touchable and easy to handle as they produce little or no heat (about temperature). Combined with having no glare, OLEDs can bring lightings closer to the user without causing any discomfort.		柔性可折 OLED照明面板的可弯曲屏幕具有超轻超薄的特点，使得其厚度薄、重量轻的OLED特性更为突出，尤其是正在研发的在曲面状态下也可以发出让眼睛更舒服的光线等，我们不断去尝试以前没有做过的东西。 Flexible Flexible Panels will mark yet another significant breakthrough for OLEDs. Flexible Panels will open doors to unprecedented design by being shapeable on curved surfaces, while taking the OLED’s ultra-thin and super-lightweight characteristic to the next level.
	无紫外线 由人造光源发出的紫外线有助于培养农作物等优点，但是也会导致皮肤老化等负面影响。 从这点来看，因为OLED根本不产生紫外线，因此可以说是一种"环保健康"的光源。 No UV UV from artificial light sources have been fully utilized to our benefit, such as growing plants. However, UV is also the cause for wrinkles and also what attracts insects. OLEDs are completely free of UV, adding another ‘human-friendly to their characteristics.		透明性 在未来，由我们开发的可自由自在折叠的可弯曲屏幕会在很多领域得到广泛应用。更值得期待的是，到时候也会出现唯一OLED照明才能做到的透明光源。 Transparent Once true panels become fully available in the market, We will also be producing panels that are transparent, yet another characteristic unique to OLEDs.

高功效

High Efficacy

OLED照明与LED相似，能达到100lm/w功效。预计到2017年，功效将达到140lm/w。
Our OLED light panels have reached 100lm/W efficacy which is similar to LEDs.The efficacy is forecasted to reach 140lm/W by 2017.

高显色指数High CRI：

显色指数（CRI）是用于评定光源质量的重要指标，宇瑞照明-OLED面板CRI指数能达到90以上，显示自然光下的真实色彩，且不影响其他功能。
CRI is an important indicator for the quality of a light source. Our OLED light panels have a CRI level of over 90 without compromising other performance factors such as efficacy.

长寿命Long Lifetime：
oled照明寿命可长达40000小时。
Our  OLEDs are expected to reach 40,000 hours and above at all luminanceoled options by 2017

极近自然光的OLED光源
The Closest Light Source to Natural Light

OLED light panels have spectral power distributions closest to sunlight, and people feel emotionally comfortable under OLED light. Therefore, OLEDs are ideal for places where natural light is unavailable, or for places where good quality light is needed.

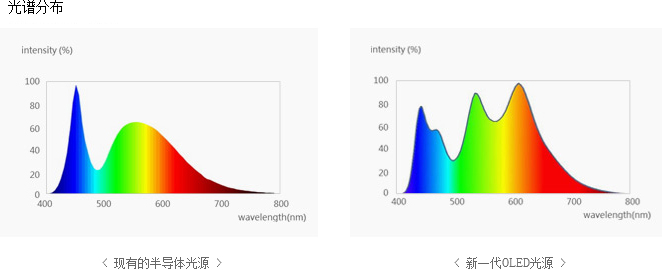

OLED光谱能量平均分散，色彩丰富接近太阳光光谱，没有430nm以下的高能短波蓝光，然而LED中的400-460nm高能短波蓝光明显高于太阳光，可穿透水晶体直达视网膜，造成不可修复的光化学损伤。

OLED spectral energy  is distributed unformly, which has  rich colors  that closest  to  solar spectrum without  high-energy shortwave Blu ray  under 430nm,however  the LED  light  contains 400-460nm was significantly higher than that of high-solar light , can penetrate the lens to the retina, causing unrecoverable  photochemical damage

高显指与低显指灯光下的色彩对比图

The Comparison of  High CRI and Low CRI

LED与OLED灯光下的清晰度对比图

The Comparison of Photography definition Between OLED Light Source and LED Light Source

OLED与LED灯光下的阴影对比

 The Comparison of Shadow Between OLED Light Source and LED Light Source

OLED与LED的厚度对比图

The Comparison of Thickness Between OLED and LED

210mm*50mmOLED柔性照明面板

210mm*50mm OLED flexible Lighting Sheet

OLED照明面板经典应用场景展示
OLED light panels classic case in real-life applications

首尔国立大学——图书馆OLED照明

首尔国立大学图书馆的阅读室采用了OLED照明，有将近1,100个OLED照明面板组成，这是世界最大的OLED照明工程之一。OLED照明接近自然光、无眩光、无蓝光、无紫外线，带给眼睛最舒适的感受，对学生来说是最合适的光源。OLED独特的性能和艺术特质与图书馆现代化的室内设计理念一致，相得益彰。

韩屋——木质结构OLED照明

韩屋是韩国传统建筑，大多数都由木质结构建造而成。考虑到失火的风险以及对传统建筑的保护，很难为韩屋找到合适的照明灯具。OLED照明面板轻薄、不发热的特点为韩屋提供了一个理想的解决方案。

Hanok is a Korean traditional style building, which is mostly made out of wood. It has been difficult to find the right light source for Hanok because of fire hazards and difficulty in installing lighting without harming the building structure. OLED light panels, with lightweight and no heat characteristics, provided an ideal solution to the Hanok project.

BELPORT——化妆品展示OLED照明

BELPORT是韩国一家大型的高档化妆品商场。OLED照明超薄、轻便，可轻易集成在展示铝架上；OLED照明不发热，化妆品不变质，包装不褪色；OLED照明无阴影，给人更美好、更高端的展示效果；同时，也可帮助顾客和员工减少视觉疲劳，灯和，妆容更显优雅，因而在BELPORT得到广泛应用。

BELPORT

Belport is a multi-brand cosmetics shop in Korea. OLED light panels were applied to display cosmetic products because the lack of light heat preserves product quality while the lack of shadows makes them more visually appealing to customers. The OLED light panels are easily embedded in the store’s aluminum selves because they are thin and light. It also helps reduce eye fatigue for both customers and employees. It is the world’s first application of OLED lighting panels in multi-brand cosmetics shops.

TINCAN，著名AL-A设计——Pop-up餐厅OLED照明

TINCAN,伦敦，著名AL-A设计的pop-up餐厅,餐厅内多为新鲜的高档食材，OLED照明面板不发热，节约制冷成本，利于食材的保鲜，超轻薄，可随意与高档食材融合在一起，因此被用作照明主光源。采用OLED光源是基于它独特的光照效果和可设计性，OLED照明面板结构简单，AL-A完全可以自由设计属于自己的心灵之光。

TINCAN

OLED light panels were adopted as the main light source at Tincan, a pop-up restaurant in London designed by AL_A. The decision to use OLEDs for the restaurant’s lighting was based on its excellent light quality as well as the design possibilities unique to OLEDs. Moreover, the simplicity of OLEDs enabled the architectural design firm AL_A to design and manufacture the light fixtures themselves.

办公室装修——OLED照明效果

Office Decration —— The OLED Lighting Effect

OLED照明已成为时尚人士的新选择，未来将成为主流。OLED照明在许多住宅和商用市场方面均具有应用的潜力，高能效、高显指和多样化的设计为市场推广提供了强大的动力。OLED照明将因其不同的优势与LED照明分占市场，改变在许多环境中我们使用光的方式。

OLED lighting has become a new taste for fashion people, whichwill become a new consumption hot spot in the future. OLED lighting has the potential to be applied in many residential and commercial markets, and the design of high energy efficiency, high display and diversified design could providesa powerful driving force for market promotion. OLED lighting will occupy markets with LED lighting due to its various advantages, changing the way we use light in diffierent environments.

别墅装修——OLED照明效果

Villa Decration —— The OLED Lighting Effect

此款灯具需要200个组件，每个组件需要一个φ100mm的oled照明面板，每个配件都精心打造，绝美的设计，大气的格调，最健康自然的灯光，宛如繁星点点，带给您美妙的奢华享受。

This kind of lights need 200 modules, each of modules requires  φ100mm OLED Lighting panel  and is elaborate, marvellous, gorgeous style.The most healthy light which like the flash star brings you wonderful  enjoyment

M系宝马车——OLED立体炫酷照明

    M—BMW OLED STEREO COOL LIGHTING

宝马在CES 2015上正式发布了一款全新的BMW M4 Concept Iconic Lights概念车。该车基于M4打造，全新OLED尾灯设计，效果十分炫酷。尾灯使用OLED光源，灯组仅1.4mm厚，显示效果看起来十分立体，并具有动态效果。这是OLED技术在汽车尾灯和后转向灯上的成功应用之一。

BMW  officially released a new M4 Concept Iconic Lights BMW on CES 2015. M4 is the foundation of this car, the new OLED taillight design, the effect is very cool. The tail lamp uses the OLED light source, the light group is only 1.4mm thick, the display effect looks very solid, and has the dynamic effect. This is one of the successful application of OLED technology in automobile tail lamp and rear turn lamp.

OLED极近自然光

OLED:the Closest Light Source to Natural Light

OLED : 更健康的光源创造更美好的生活

OLED : Better Quality of Light, Better Quality of Life

光线已经成为人们日常生活中必不可少的一部分。该光源追求的最终目标就是相当于成为自然光。 由于OLED在没有任何处理的纯净的状态下拥有相当于自然光的光谱分布，因此OLED可以说是一种环保高效的绿色光源。

Light has always been an indispensable part of our everyday lives. The ultimate reference for artificial light is of course, natural light. Among all high-efficiency/eco-friendly light, OLEDs have the closest spectral distributions to natural light, even in its most natural state.

OLED的结构及发光原理

OLED是以有机材料为基础制造的新兴光源。该照明以各种各样的有机物质层来组成，其中发光层(EML)作用是将电子转换成光源，此外，其他有机物质层会帮助电子流动顺畅，使发光层发出更亮的光线。

OLED (Organic Light Emitting Diode) is an organic materials based light source. The source of the light is the EML (Emissive Layer) which responds to electric currents by emitting light. Other layers that comprise the organic compound are the ETL (Electron Transport Layer), HTL (Hole Transport Layer), HIL (Hole Injection Layer). Their role is to optimize the flow of the electric current so that the EML's light emission is maximized.

健康的光线&设计创新无极限

Human-Friendly Light & Unlimited Design Possibilities
